제품 상세 정보:
|
| 유형: | 아날로그 송신기 | 채널 수: | 8채널 |
|---|---|---|---|
| 송신 전력: | 2000mW | 빈도: | 0.9G/1.2G/1.3G |
| 체계: | PAL/NTSC | 전압: | DC 12V |

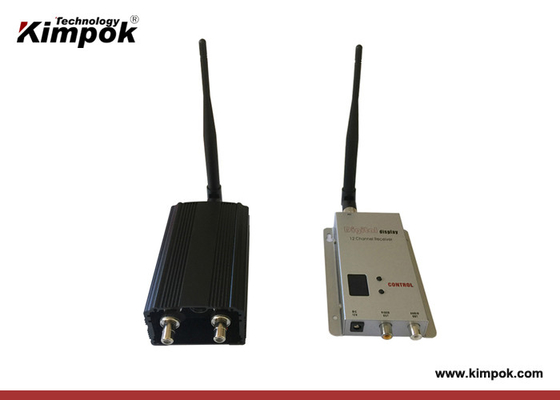

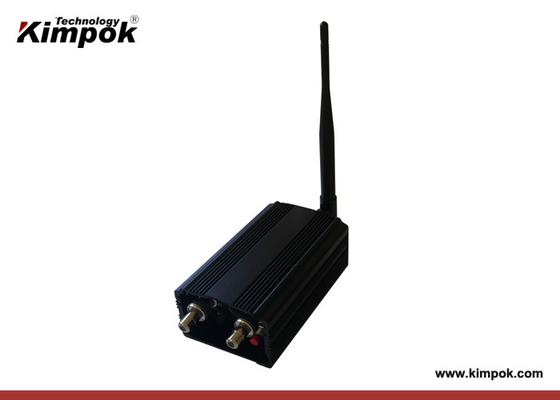

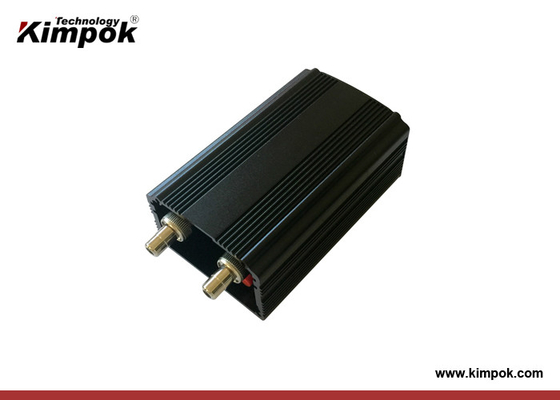

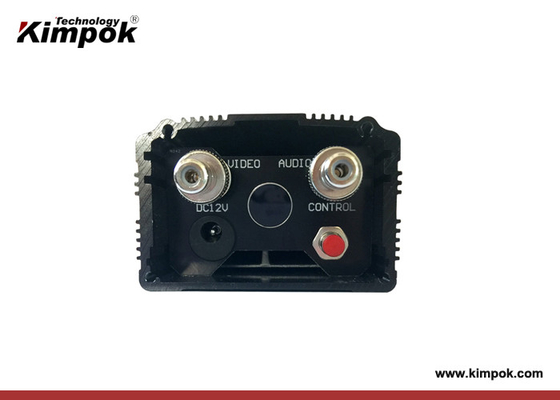

900Mhz / 1.2Ghz 2000mW Wireless FPV Drone Video Transmitter and Receiver with DC 12V 8 Channels
FPV/Drone video transmitter Description:
KP-A2 is an excellent performance long range wireless video transmission equipment, its large power margin, more suitable for complex physical environment. The use of 2dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 1~4km or so, if the raising of the high gain directional antenna, increased to 6km away (if the working environment is Non-line-of-sight, transmission distance is case by case). And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
Specification:
|
Voltage |
DC 12V |
|
Current |
600mA |
|
Frequency |
0.9G/1.2G/1.3G |
|
Number of channels |
8 channels |
| Frequency Bands | 1.040Ghz; 1.080Ghz; 1.120Ghz; 1.160Ghz; 1.200Ghz; 1.240Ghz; 1.280Ghz; 1.320hz |
|
Transmit Power |
2000mW |
|
Video Output |
1 Vp-p(FM) |
|
Audio Output |
1 Vp-p(FM) |
|
Audio Carrier Ware |
5.5M 6.0M |
|
Distance |
1~4km LOS, 1km NLOS on ground; up to 30km from air to ground |
|
Overall Configuration |
Transmitter, receiver, AV cable, antenna |
|
Temperature |
-10℃ ~ +50℃ |
|
Transmitter Weight |
388g |
|
Receiver Weight |
120g |
|
Dimensions (L * W * H) |
Transmitter:111*67*60mm. Receiver:116*80*21mm |
|
Box size (L * W * H) |
245*160*65mm |
Kimpok Technology is the wireless security provider of choice for police departments, private investigators, UAV hobbyist, and federal agencies nationwide, in large part due to our range of wireless video transmission devices. Our selection of state-of-the-art wireless video transmitters and receivers, wireless video links, antennas, and wireless sensors, are designed so you can place your cameras where you need them, without the concern of running video cable.
Our wireless video receiver and transmitter options are used for a variety of demanding applications, including long range wireless video transmission and remote video surveillance. Our 1.2 GHz / 2.4 GHz / 5.8 GHz wireless links offer a cost-effective and scalable wireless solution; these wireless access points let you send multiple camera signals to a single receiver, reducing overall system cost.
Whatever your wireless surveillance application or budget, we can find the right solution for you. Contact us! We can customize any solution to fit your requirements.
